PDF Version

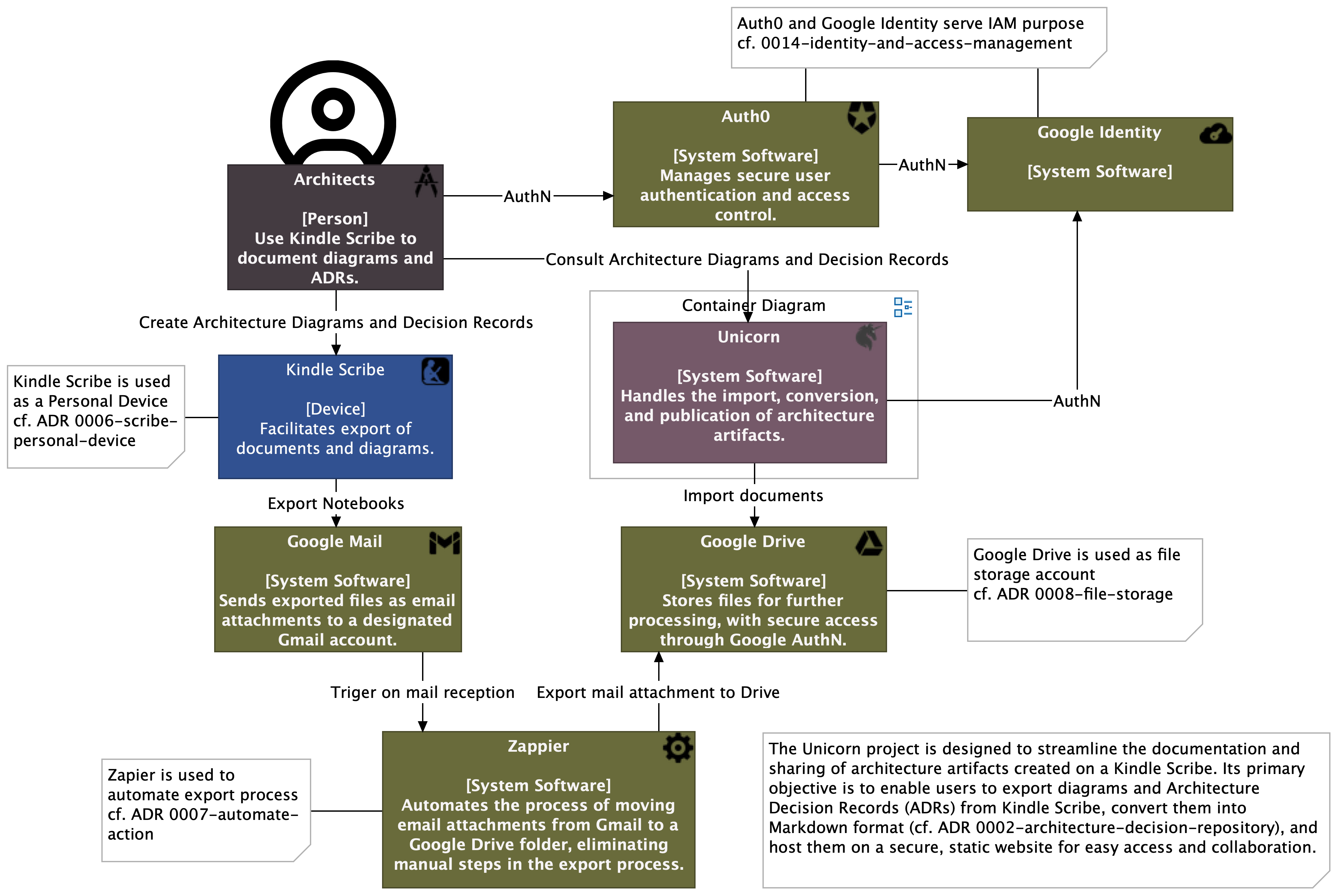

System Context Diagram

• Introduction
• Container Diagram (Archimate Diagram Model)
• Architects (Business Actor)
• Unicorn (Application Component)
• Google Drive (Application Component)
• Google Mail (Application Component)
• Zappier (Application Component)
• Auth0 (Application Component)
• Google Identity (Application Component)
• Kindle Scribe (Device)

Introduction

The Unicorn project is designed to streamline the documentation and sharing of architecture artifacts created on a Kindle Scribe. Its primary objective is to enable users to export diagrams and Architecture Decision Records (ADRs) from Kindle Scribe, convert them into Markdown format, and host them on a secure, static website for easy access and collaboration.

PDF Version

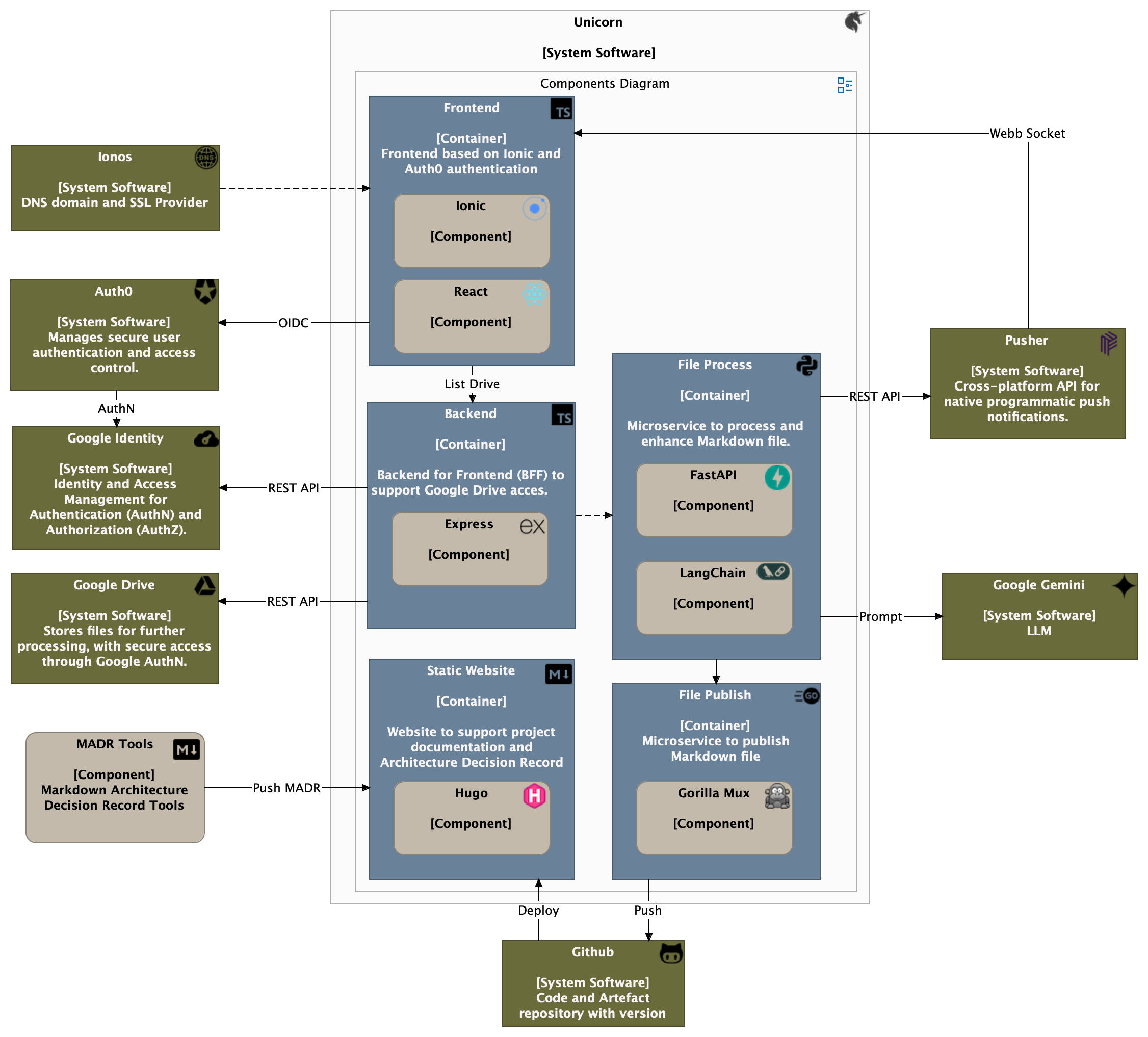

Container Diagram

• Introduction
• Unicorn (Application Component)
  • Components Diagram (Archimate Diagram Model)
  • Frontend (Application Component)
    • React (Application Function)
    • Ionic (Application Function)
  • Backend (Application Component)
    • Express (Application Function)
  • Static Website (Application Component)
    • Hugo (Application Function)
  • File Process (Application Component)
    • FastAPI (Application Function)
  • File Publish (Application Component)
    • Gorilla Mux (Application Function)
• Google Drive (Application Component)
• Google Identity (Application Component)
• Auth0 (Application Component)
• MADR Tools (Application Function)
• Ionos (Application Component)
• Github (Application Component)
• Google Gemini (Application Component)
• Pusher (Application Component)

Introduction

System architecture for the Unicorn project, which follows a Frontend/Backend pattern. The Frontend uses an Ionic framework with React (cf. ADR 0013-frontend-framework) and integrates Auth0 for secure user authentication via Authorization Code Flow with PKCE. It connects to Google Identity to obtain access tokens, enabling access to Google Drive for file storage and management.

PDF Version

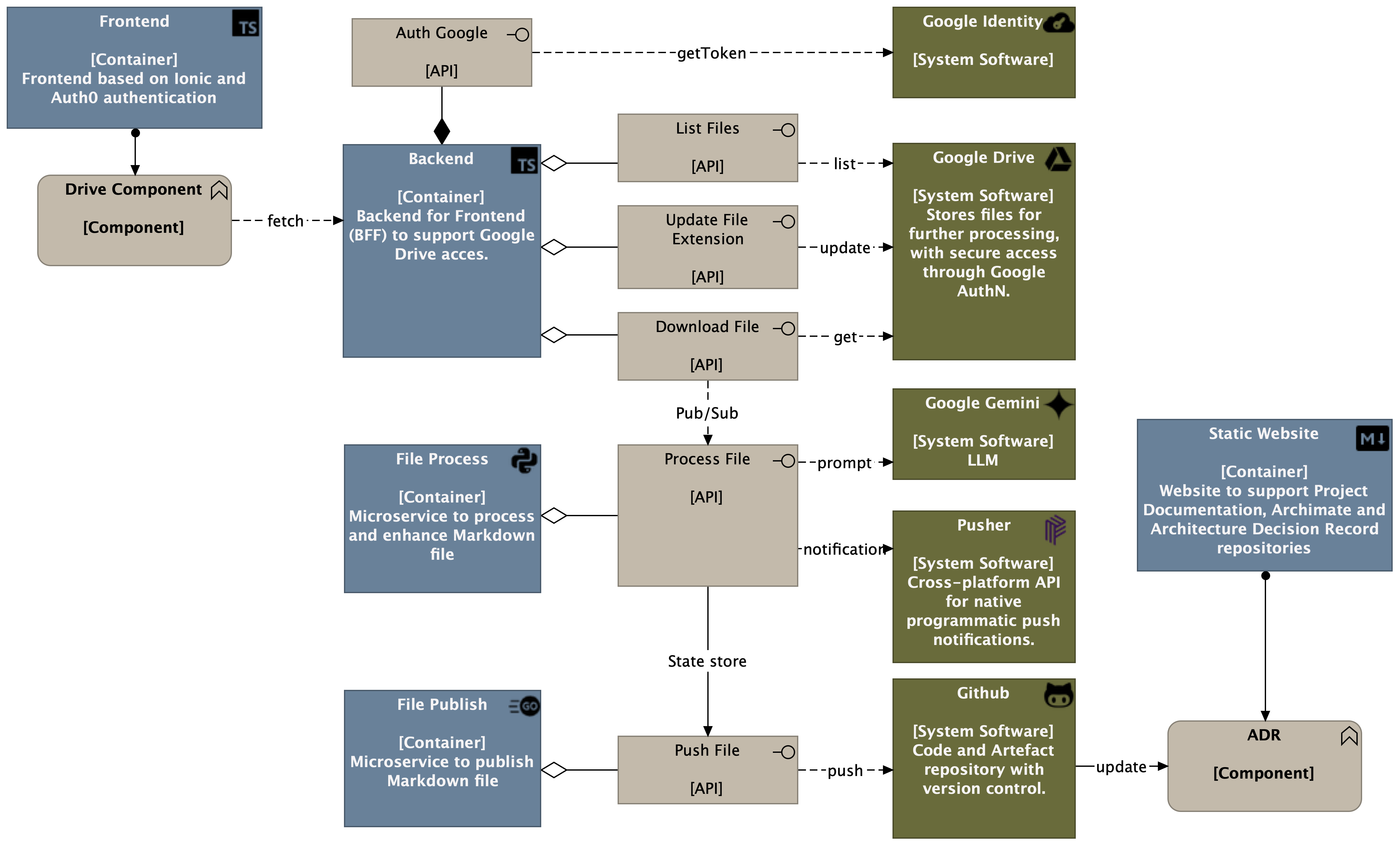

Components Diagram

• Introduction
• Backend (Application Component)
• List Files (Application Interface)
• Update File Extension (Application Interface)
• Download File (Application Interface)
• File Process (Application Component)
• Process File (Application Interface)
• Auth Google (Application Interface)
• Google Identity (Application Component)
• Google Drive (Application Component)
• Push File (Application Interface)
• Github (Application Component)
• Frontend (Application Component)
• Drive Component (Application Function)
• Static Website (Application Component)
• ADR (Application Function)
• File Publish (Application Component)
• Google Gemini (Application Component)
• Pusher (Application Component)

Introduction

![Components Diagram][embedView]

PDF Version

Deployement Diagram

• Introduction
• NodeJS (Application Component)
• Backend (Application Component)
  • Express (Application Function)
  • Dapr (Application Function)
• Container Instance (Node)
• Azure Service Bus (Technology Service)
• [Queue] Files (Artifact)
• Uvicorn (Application Component)
• File Process (Application Component)
  • Dapr (Application Function) 2
  • FastAPI (Application Function)
• Frontend (Application Component)
  • React (Application Function)
  • Ionic (Application Function)
• Static Website (Application Component)
  • Hugo (Application Function)
• Static Web App (Node)

Introduction

Static Web App hosted on deployment node. The architecture is composed of two main containers:

PDF Version

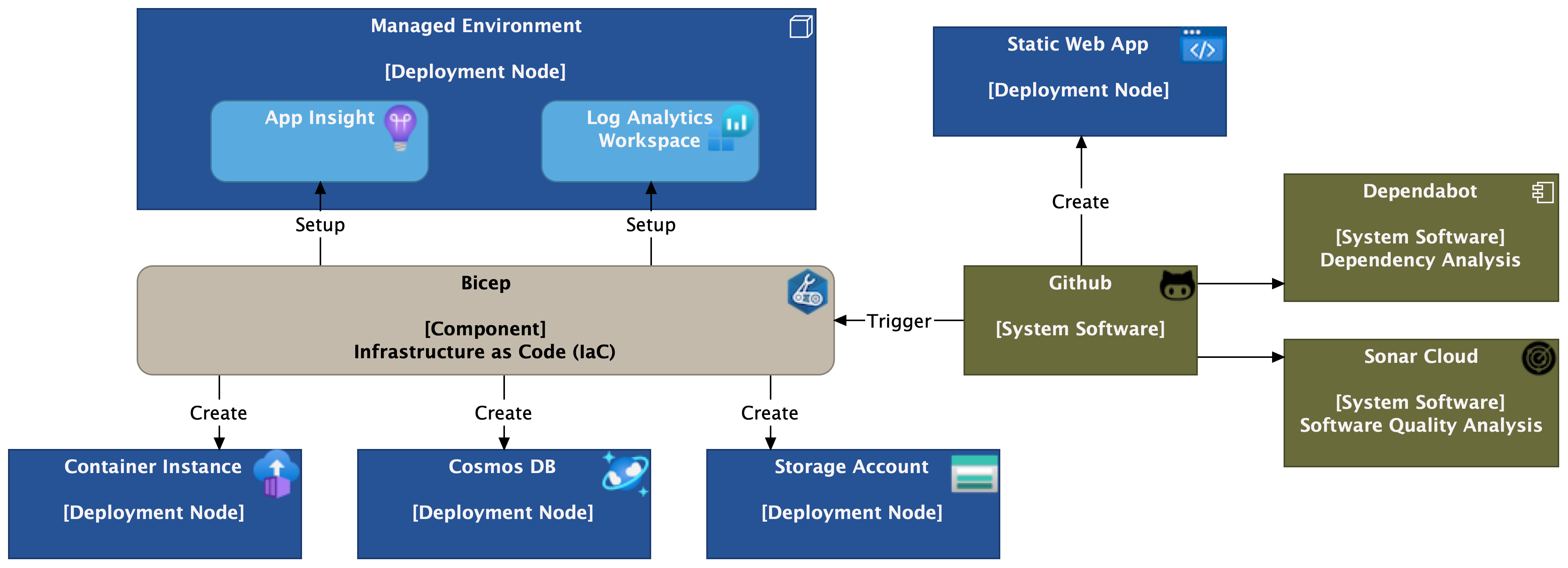

Infrastructure Diagram

• Introduction
• Container Instance (Node)
• Cosmos DB (Node)
• Storage Account (Node)
• Bicep (Application Function)
• Managed Environment (Node)
  • App Insight (Technology Service)
  • Log Analytics Workspace (Technology Service)
• Static Web App (Node)
• Github (Application Component)
• Sonar Cloud (Application Component)
• Dependabot (Application Component)

Introduction

Infrastructure diagram with an emphasis on infrastructure as code (IaC), automation, and quality assurance.

• Bicep (IaC Component) Automates the provisioning of infrastructure (Container Instances, Cosmos DB, Storage Account) within a Managed Environment. It ensures repeatability and consistency.
• Managed Environment Provides observability through App Insights and Log Analytics Workspace, addressing monitoring and operational concerns.
• GitHub Acts as the source code repository and orchestrates triggers for creating deployment nodes (e.g., Static Web App) and integrating automated quality and security checks.

DevSecOps Integrations:
