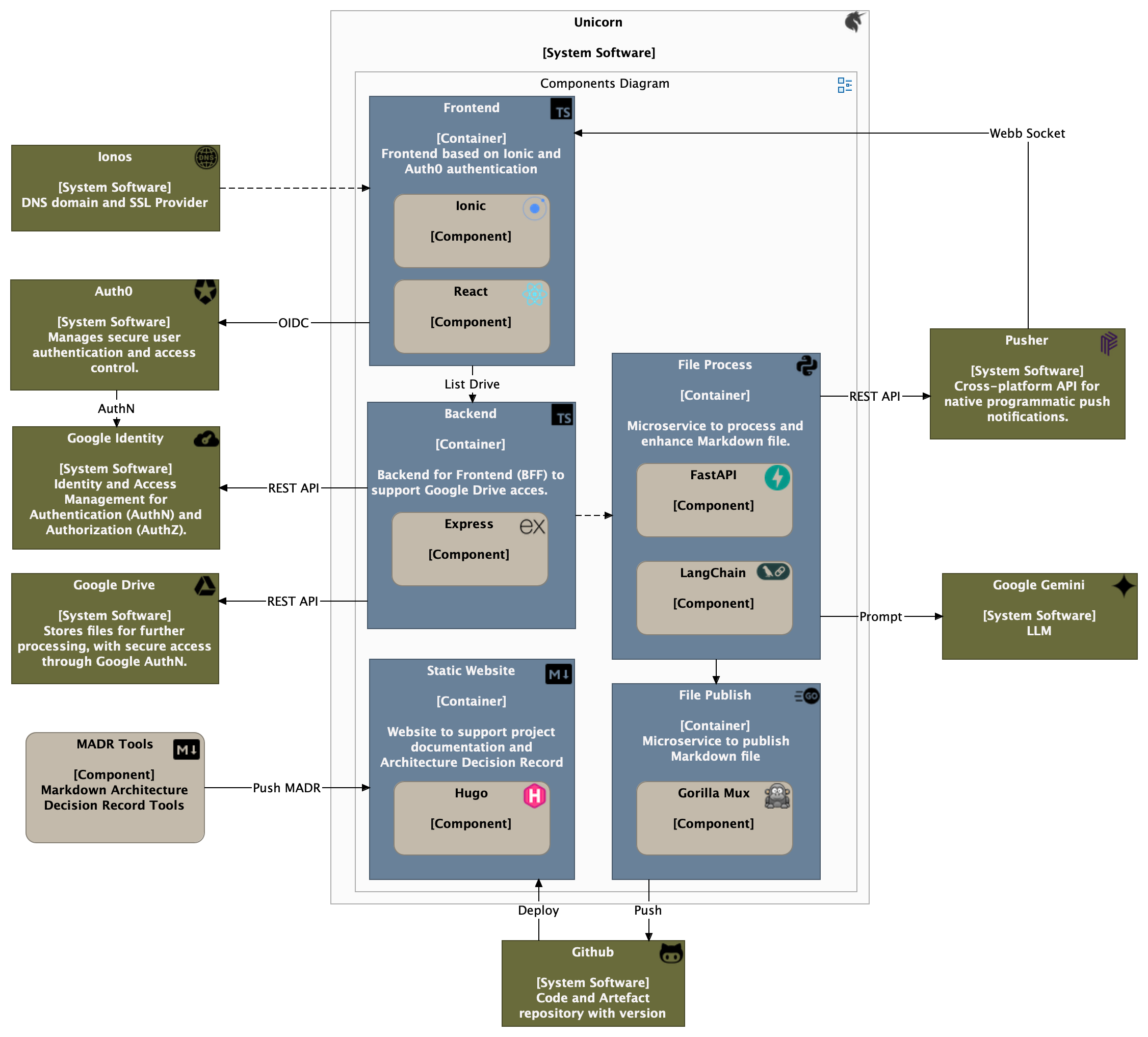

Container Diagram

Introduction

System architecture for the Unicorn project, which follows a Frontend/Backend pattern. The Frontend uses an Ionic framework with React (cf. ADR 0013-frontend-framework) and integrates Auth0 for secure user authentication via Authorization Code Flow with PKCE. It connects to Google Identity to obtain access tokens, enabling access to Google Drive for file storage and management.

The Backend consists of:A Backend for Frontend (BFF) implemented using Express (cf. ADR 0015-backend-framework) to interact with Google Drive via APIs. A File Process microservice, implemented with FastAPI, to process Markdown files. The system also supports a Static Website, built with Hugo, to display project documentation, Archimate diagrams, and Architecture Decision Records (ADRs). Processed Markdown files are pushed to a GitHub repository via API, ensuring version control. MADR Tools facilitate the creation and management of ADRs.

Unicorn (Application Component)

Properties

Stereotype
System Software

Relationships

From Relationship To Name/Label Description
Unicorn Composition Relationship Frontend (Application Component)
Unicorn Composition Relationship Backend (Application Component)
Unicorn Composition Relationship Static Website (Application Component)
Unicorn Composition Relationship File Process (Application Component)
Unicorn Composition Relationship File Publish (Application Component)

Handles the import, conversion, and publication of architecture artifacts.

Components Diagram (Archimate Diagram Model)

Backend for Frontend (BFF) architecture that facilitates secure access to Google Drive and integrates with GitHub for file management. The BFF handles user authentication via Google Identity to interact with Google Drive APIs for listing, updating, and downloading files. A File Process Microservice asynchronously processes Markdown files using a Pub/Sub mechanism and pushes the processed files to GitHub for version control. The architecture ensures separation of concerns, secure access, and scalability for file processing and artifact storage.

Frontend (Application Component)

Properties

Stereotype Github
Container https://github.com/mickael-royer/unicorn-frontend

Relationships

From Relationship To Name/Label Description
Frontend Assignment Relationship React (Application Function)
Frontend Assignment Relationship Ionic (Application Function)
Frontend Triggering Relationship Auth0 (Application Component) OIDC Authorization Code Flow with PKCE https://auth0.com/docs/get-started/authentication-and-authorization-flow/authorization-code-flow-with-pkce
Frontend Triggering Relationship Backend (Application Component) List Drive

Frontend based on Ionic and Auth0 authentication

React (Application Function)

Properties

Stereotype
Component

Ionic (Application Function)

Properties

Stereotype
Component

Backend (Application Component)

Properties

Stereotype Github
Container https://github.com/mickael-royer/unicorn-backend

Relationships

From Relationship To Name/Label Description
Backend Assignment Relationship Express (Application Function)
Backend Triggering Relationship Google Drive (Application Component) REST API Access Google Drive via API
Backend Triggering Relationship Google Identity (Application Component) REST API Get Access Token via API
Backend Flow Relationship File Process (Application Component)

Backend for Frontend (BFF) to support Google Drive acces.

Express (Application Function)

Properties

Stereotype URL
Component https://expressjs.com

Express is a fast, unopinionated, minimalist web framework for Node.js, providing a robust set of features for web and mobile applications.

Static Website (Application Component)

Properties

Stereotype Github
Container https://github.com/mickael-royer/unicorn-hugo-website

Relationships

From Relationship To Name/Label Description
Static Website Assignment Relationship Hugo (Application Function)

Website to support Project Documentation, Archimate and Architecture Decision Record repositories

Hugo (Application Function)

Properties

Stereotype URL
Component https://gohugo.io/

File Process (Application Component)

Properties

Stereotype
Container

Relationships

From Relationship To Name/Label Description
File Process Assignment Relationship FastAPI (Application Function)
File Process Triggering Relationship File Publish (Application Component)
File Process Triggering Relationship Pusher (Application Component) REST API

Microservice to process and enhance Markdown file

FastAPI (Application Function)

Properties

Stereotype URL
Component https://fastapi.tiangolo.com/

FastAPI is a modern, fast (high-performance), web framework for building APIs with Python based on standard Python type hints.

File Publish (Application Component)

Properties

Stereotype
Container

Relationships

From Relationship To Name/Label Description
File Publish Assignment Relationship Gorilla Mux (Application Function)
File Publish Triggering Relationship Github (Application Component) Push Push change to repository via API
File Publish Triggering Relationship Google Gemini (Application Component) Prompt Generate ADR Synthesis

Microservice to publish Markdown file

Gorilla Mux (Application Function)

Properties

Stereotype URL
Component https://github.com/gorilla/mux

Package gorilla/mux implements a request router and dispatcher for matching incoming requests to their respective handler.

Google Drive (Application Component)

Properties

Stereotype Provider URL
System Software Google https://drive.google.com

Stores files for further processing, with secure access through Google AuthN.

Google Identity (Application Component)

Properties

Stereotype Provider URL
System Software Google https://developers.google.com/identity

Auth0 (Application Component)

Properties

Stereotype Provider URL
System Software Okta https://auth0.com/

Relationships

From Relationship To Name/Label Description
Auth0 Triggering Relationship Google Identity (Application Component) AuthN

Manages secure user authentication and access control.

MADR Tools (Application Function)

Properties

Stereotype Github
Component https://github.com/butonic/adr-tools

Relationships

From Relationship To Name/Label Description
MADR Tools Triggering Relationship Static Website (Application Component) Push MADR

Markdown Architecture Decision Record Tools

Ionos (Application Component)

Properties

Stereotype Provider URL
System Software Ionos https://www.ionos.fr/

Relationships

From Relationship To Name/Label Description
Ionos Flow Relationship Frontend (Application Component)

DNS domain and SSL Provider

Github (Application Component)

Properties

Stereotype URL Registry
System Software https://github.com/mickael-royer https://github.com/mickael-royer?tab=packages

Relationships

From Relationship To Name/Label Description
Github Triggering Relationship Static Website (Application Component) Deploy Deploy Hugo Website to Static Web App

Code and Artefact repository with version control.

Google Gemini (Application Component)

Properties

Stereotype URL
System Software https://aistudio.google.com/

LLM

Pusher (Application Component)

Properties

Stereotype URL
System Software https://dashboard.pusher.com/apps/1920401

Relationships

From Relationship To Name/Label Description
Pusher Triggering Relationship Frontend (Application Component) Webb Socket

Cross-platform API for native programmatic push notifications.
